Manufacturers & Exporters of : Foundation Bolt, U bolt, Threaded Bar, Strut Channel, Spring Nut, Hex Nut & Washers, Hex Bolt, Fix Bolt, Tie Rods etc.
FAS INTERNATIONAL
ABOUT US
Welcome to FAS INTERNATIONAL, we are fastener manufacturing company, where we specialize in providing high-quality and reliable fastening solutions of a wide range of industries. We are a leading fastener and cable tray manufacturing company dedicated to provide high-quality products and services to our customers with 25 years of experience in the industry. We understand the unique need of each industry and strive to provide tailored solutions that meet our customers specific requirements, whether you need standard fasteners or custom designed parts. We have the expertise and capabilities to deliver the solutions at our company. We pride ourselves on our commitment to quality, reliability, and customer service. We use only the highest- quality materials and the latest manufacturing techniques to ensure that our products are reliable, durable and perform optimally under even the most demanding conditions, in addition providing top-quality products. We are committed to provide exceptional customer service, our team of experts is always available to answer any questions or concerns our customers may have and we work closely with them to ensure that their needs are met every step of the way. Overall, we are dedicated to being a one-stop-shop for all our customers fastener and cable tray needs providing high-quality products and exceptional customer service to ensure their success.
OUR PRODUCT PORTFOLIO
Fasteners: This inches a wide range of fasteners such as screw, bolts, anchors, washers, rivets, and nuts, used in various applications across different industries.
Cable trays: The cable tray product portfolio includes a range of cable management systems used in the construction, oil and gas, and electrical industries these can be made of different materials such as steel, aluminium and plastic & come in various sizes and configurations.
Threaded rods and studs: These are used in a range of applications where long threaded fasteners are required. Such as in construction and heavy machinery.
Strut channel and fittings: Strut channels and fittings are used to create support structures for cable trays, pipes and electrical systems.
Pipe hangers and clamps : These are used to support and secure pipes in various applications such as plumbing and hvac systems.
www.fassturtsys.com | www.fasthreadedbar.com
1
FAS INTERNATIONAL

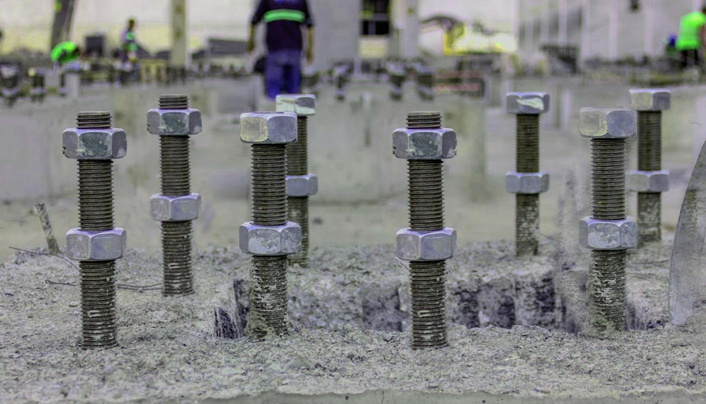

ANCHOR BOLT (FOUNDATION BOLT)
www.fassturtsys.com | www.fasthreadedbar.com
2

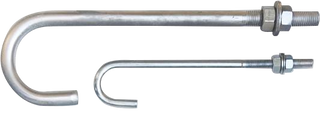

ANCHOR BOLT (FOUNDATION BOLT)
FAS INTERNATIONAL
I-BOLT
L-BOLT
J-BOLT
FOUNDATION BOLT WITH BASE PLATE
FAS-8001
FAS-8002
FAS-8003
FAS-8004
Specification For L-bolt & J-bolt
Diameters : M12 to M39 & 1/2" to 1-1/2" Threads : MM, UNC, UNF, BSW & BSF. Finishes & Color : Self finish, Electro
Galvanized (white, yellow & green finish)
Hot dip galvanized.
U-BOLT
FAS-8005
Specification For U-BOLT
Diameters : M6 to M16 & 1/4" to 5/8"
Threads : MM, UNC, UNF, BSW & BSF. Electro
Finishes & color : Self finish,
Galvanized (white, yellow & green finish) Hot dip galvanized.
www.fassturtsys.com | www.fasthreadedbar.com
3
Threaded Bars/
Threaded Rods Applications

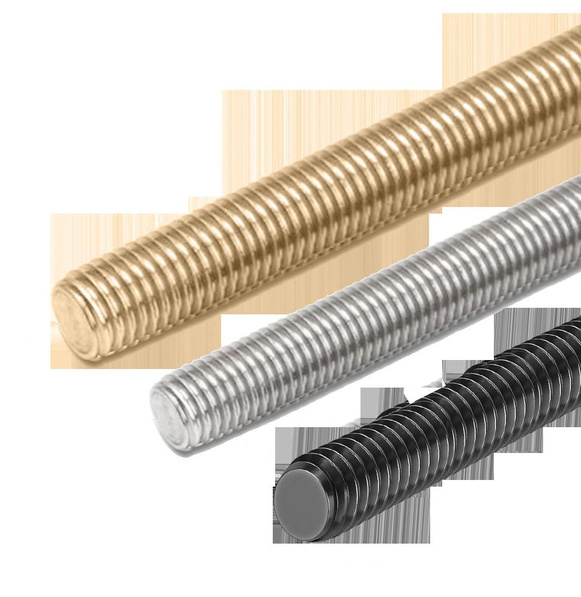

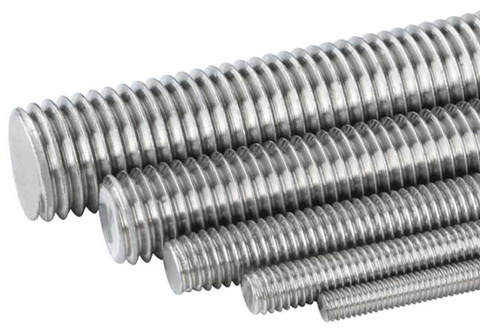

THREADED BARS/THREADED RODS
FAS-8011
Diameters :
M6 to M39
1/4" to 1-1/2"
Length available :
1 meter, 2 meter, 3 meter
3 feet, 6 feet, 10 feet.
Finishes & color :
Self finish
Electro Galvanized (white, yellow
& green finish)
Hot dip galvanized.
Threads :
MM UNC UNF BSW BSF
STRUT SUPPORT SYSTEM
Sizes Available
41x21 | 41x41 | 41x61
Strut Channel Applications
STRUT CHANNELS
NON SLOTTED CHANNEL
ITEM CODE
HEIGHT
THICKNESS
inch
mm
ga
mm
Fas SC21/3 Fas SC21/2.5 Fas SC21/2 Fas SC21/1.5 Fas SC21/1.2 Fas SC41/3 Fas SC41/2.5 Fas SC41/2 Fas SC41/1.5 Fas SC41/1.2 Fas SC61/3 Fas SC61/2.5 Fas SC61/2
13/ 16 13/ 16 13/ 16 13/ 16 13/ 16 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 2-13/32 2-13/32 2-13/32
21 21 21 21 21 41 41 41 41 41 61 61 61
11 12 14 16 18 11 12 14 16 18 11 12 14
2.9 2.6 2.0 1.6 1.2 2.9 2.6 2.0 1.6 1.2 2.9 2.6 2.0
FAS 8021
NON SLOTTED STRUT CHANNEL

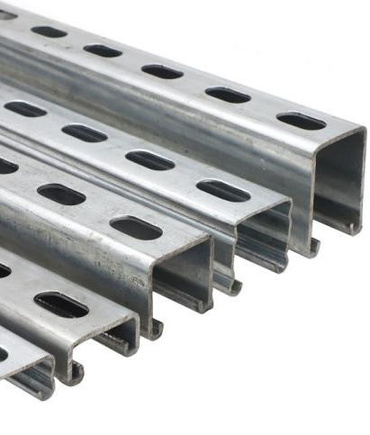

SLOTTED STRUT CHANNEL
FAS-8022
SLOTTED STRUT CHANNEL
ITEM CODE
HEIGHT
THICKNESS
SLOT SIZE
inch
mm
ga
mm
mm
Fas SC21/3 Fas SC21/2.5 Fas SC21/2 Fas SC21/1.5 Fas SC21/1.2 Fas SC41/3 Fas SC41/2.5 Fas SC41/2 Fas SC41/1.5 Fas SC41/1.2 Fas SC61/3 Fas SC61/2
13/16 13/16 13/16 13/16 13/16 1-5/8 1-5/8 1-5/8 1-5/8 1-5/8 2-13/32 2-13/32
21 21 21 21 21 41 41 41 41 41 61 61
11 12 14 16 18 11 12 14 16 18 11 14
2.9 2.6 2.0 1.6 1.2 2.9 2.6 2.0 1.6 1.2 2.9 2.0
14 x 28 14 x 28 14 x 28 14 x 28 14 x 28 14 x 28 14 x 28 14 x 28 14 x 28 14 x 28 14 x 28 14 x 28
FAS-8023
STRUT CHANNEL COMBINATION BACK TO BACK WELDED
ITEM CODE
Fas SBB2.5 Fas SBB2 Fas SBB2.5 Fas SBB2
HEIGHT
inch
mm
3-1/4 3-1/4 3-1/4 3-1/4
82 82 82 82
THICKNESSSLOT SIZE
ga
mm
mm
12 14 12 14
2.6 2.0 2.6 2.0
14 X 28 14 X 28 14 X 28 14 X 28
THICKNESS : 1MM TO 3MM FINISHES : BLACK & GALVANIZED
STRUT CHANNEL COMBINATION BACK TO BACK WELDED
SPRING CHANNEL NUTS
FAS-8031
Channel Nut Without Spring
Size (MM) x (H)
Size (inch) x (H)
M6x6mm M8x6mm M10x8mm M12x8mm M12x10mm M16x12mm
1/4"x 1/4"
5/16"x 5/16"
5/ 16"x3/8" 3/8"x3/8" 1/2"x3/8"
1/2"x1/2"
5/8" to 7/8x 3/8 5/8" to 7/8"x7/16 5/8" to 7/8x1/2"
FAS-8033
Long Spring Channel Nut
Size (MM) x (H)
Size (inch) x (H)
M6x6mm M8x6mm M10x8mm M12x8mm M12x10mm
1/4"x1/4"
5/ 16"x5/ 16"
5/ 16"x3/8" 3/8"x3/8"
1/2"x1/2"
5/8" to 7/8"x3/8" 5/8" to 7/8"x7/16" 5/8" to 7/8"x1/12 1/2"x3/8"
FAS-8032
Short Spring Channel Nut
Size (MM) x (H)
Size (inch) x (H)
M6x6mm M8x6mm M10x8mm M12x8mm M12x10mm
1/4"x1/4"
5/ 16"x5/ 16" 5/ 16"x3/8 3/8"x3/8" 1/2"x1/2 1/2"x3/8"
FAS-8034
Top Spring Channel Nut
Size (MM) x (H)
Size (inch) x (H)
M6x6mm M8x6mm M10x8mm M12x8mm M12x10mm
1/4"x1/4"
5/ 16"x5/ 16" 5/ 16"x5/ 16" 5/ 16"x3/8" 3/8"x3/8" 1/2"x1/2" 1.2"x3/8"
Finishes & Color: Electro Galvanized (Blue or yellow Passivation), Hot Dip Galvanized.
FAS-9001
FAS-9002
FAS-9003
FAS-9004
FLAT SQUARE WASHER
3 HOLE L BRACKET
4 HOLE T BRACKET
ANGLE DELTA BRACKET 90
FAS-9005
CROSS FLAT PLATE
FAS-9009
T BRACKET 90
FAS-9013
U BRACKET 20,40,80 MM
FAS-9017
3 ANGLE
FAS-9006
BASE PLATE 100 X 100
FAS-9010
EXTERNAL CHANNEL CONNECTOR
FAS-9014
4 HOLE ANGLE BRACKET
FAS-9018
SINGLE CHANNEL CANTILEVER ARM
FAS-9007
45° OBTUSE ANGLE BRACKET
FAS-9011
BEAM CLAMP
FAS-9015
Z BRACKET 20,40,80 MM
FAS-9019
CANTILEVER ARM BACK TO BACK
FAS-9008
ANGLE ACUTE BRACKET 45
FAS-9012
2 HOLE ANGLE BRACKET
FAS-9016
FLAT PLATE HOLE 2,3,4,5
FAS-9020
BRACED CANTILEVER ARM

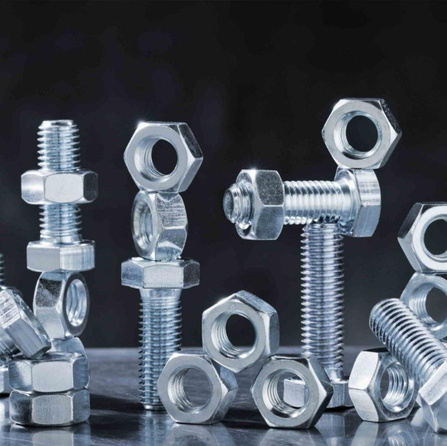

HEX BOLT HEX NUT & WASHERS
FASTENERS
HEX BOLT
(FAS 8041)
BOLTS
Size: M6 To M50 Or 1/4" to 2"
Threads : MM, UNC, UNF, BSW & BSF.
Grades: Bolts Are Made Of Grade 4.6, 4.8, 5.6, 5.8, 8.8 Finish/colours: Hot Dip Galvanized, Electro
Galvanized (Blue or Yellow Passivation), Bright Finish,
Self/black/Natural.
HEX BOLT HALF THREAD
HEX NUT
(FAS 8043)
TAPER NUT
LONG NUT
HUB BOLT
(FAS 8042)
NUTS
Size: M6 To M48 or 1/4" to 2"
Grades: Nuts Are Made Of Grades 4,5,6,8,2h
Finish/colours: Hot Dip Galvanized, Electro
Galvanized (Blue or Yellow Passivation), Bright Finish,
Self/black/Natural.
(FAS 8044)
(FAS 8045)
WASHERS
Size: 6mm To 48mm Or 1/4" to 2"
Stock Range: Plain Washers, Square Washers, Spring
Washers, Heavy Washers, Sample Drawings/as Per
Customer Requirements
Finish/colours: Hot Dip Galvanized, Electro
Galvanized (Blue or Yellow Passivation), Bright Finish,
Self/black/Natural.
(FAS 8046)
FIXING & OTHERS ACCESSORIES WITH APPLICATIONS.
FAS-0001
Rawl/ Fix Bolt (with Hook)
Size: M6, M8, M10, M12, M16, M20 Lenght (mm) : 50,60,75,90,125,150
FAS-0002
Fencing Coupler
FAS-0003
Hill Side Washer
Size : 12mm, 16mm, 18mm, 20mm, 22mm 24mm, 27mm, 30mm, 32mm
FAS-0004
Rivets
Size : 12mm, 14mm, 16mm, 18mm, 20mm
FAS-0005
Beam Clamp
Size: (M16 to M32)
FAS-0006
Carriage Bolts
Size : M6, M8, M10, M12, M16, M20
